Andy Werback's Legacy Project : Working on the rudder and elevator/horiz stab

03 - 31 - 2005

Well, lots of sanding. The rudder, elevators, horizontal stab and the interface between the h stab and vert stab get a lot of micro and sanding, fit checking, realignment of one rudder hinge. Finally, everything fits and moves smoothly, good clearance. Installed the final BIDs on the rudder and vertical stab after rebuilding the lower end of the rudder.

Other work included building a frame/mounting for the rudder bars around the firewall/engine mount.

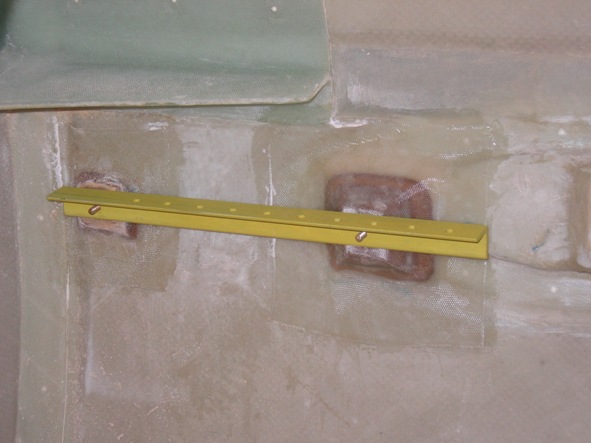

Starting the supports for the rudder bars. Aluminum angle with a hole pattern to allow adjustment

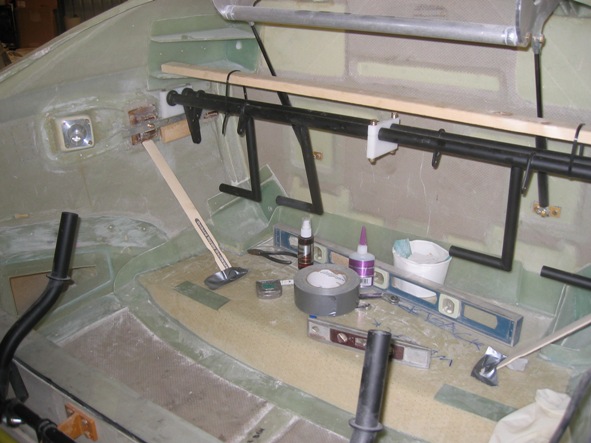

Installing phenolic supports for the 10-32 bolts with flox. Everything is leveled and square

A coat of primer and it looks like it should do it. BIDs are installed

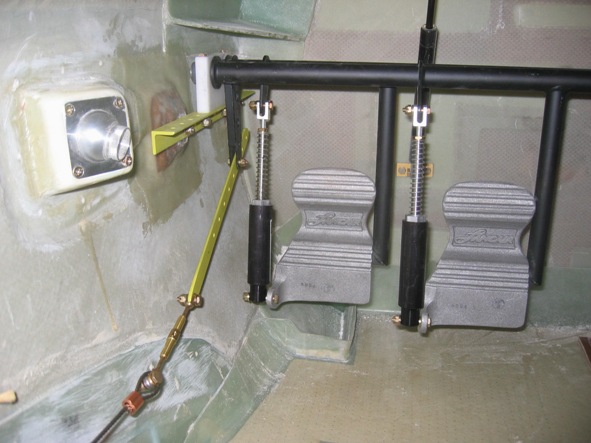

Test fit - an adjustable clevis is going to connect the rudder cable to the pedals

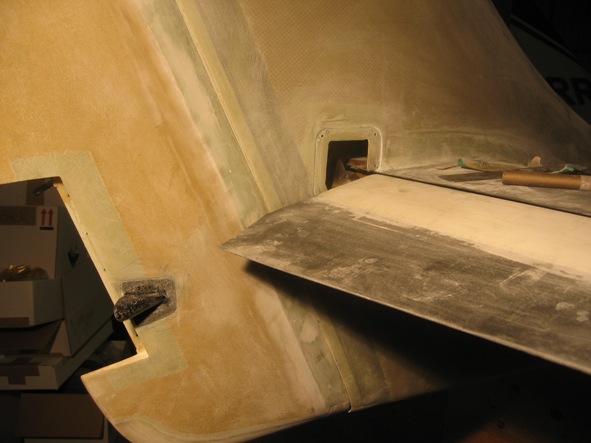

Now to work on the foam and add micro to make a smooth transition from the horz stab to the elevator

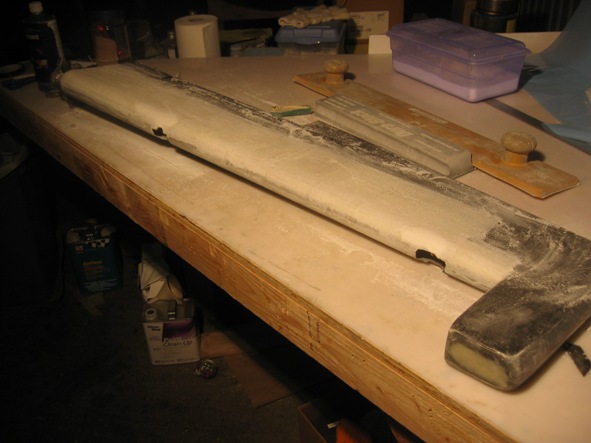

Test fit, micro, sand, repeat

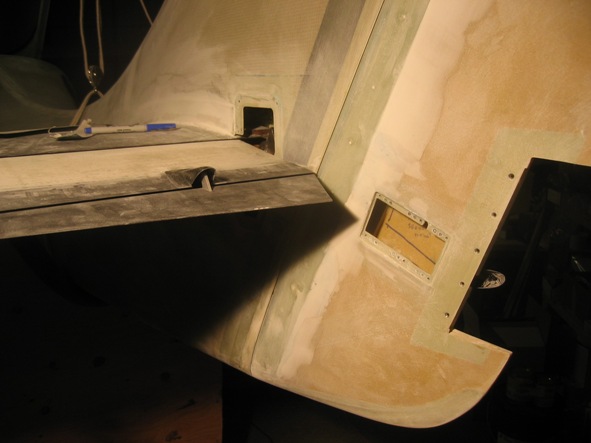

Also work on the access panel cutout

Adding micro with the heat gun to make it go on smoothly. This all turned out well, but lots of work was required (pretty much normal for this stage!)
